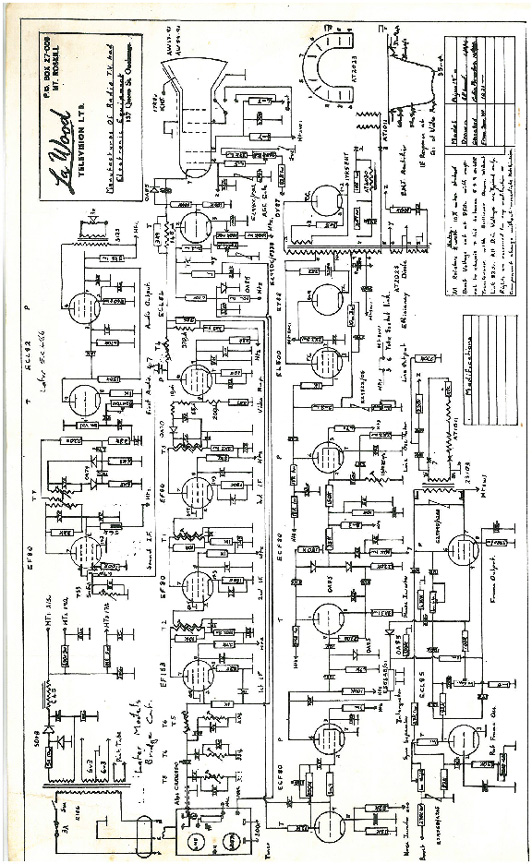

Circuit
of La Wood 'Bijou Model' 19" television. (note - Drawn by
R.H.Wood 6/9/64. Checked by Colin Brookes 10/9/64). This drawing
applies to sets from No 21 onwards. The earlier EF91 valves were
now replaced by EF80's.
Drawing courtesy
of NZVRS museum. |
|
